Sheet metal cutting processes such as forging, stamping, drilling, welding, cutting, slitting, machining, molding, and casting leave burrs. By removing the burrs and oxide layer on the cut edge, the sheet metal parts are perfectly prepared for subsequent processes such as coating or machining. This paint preparation increases the paint adhesion and thus the corrosion protection.

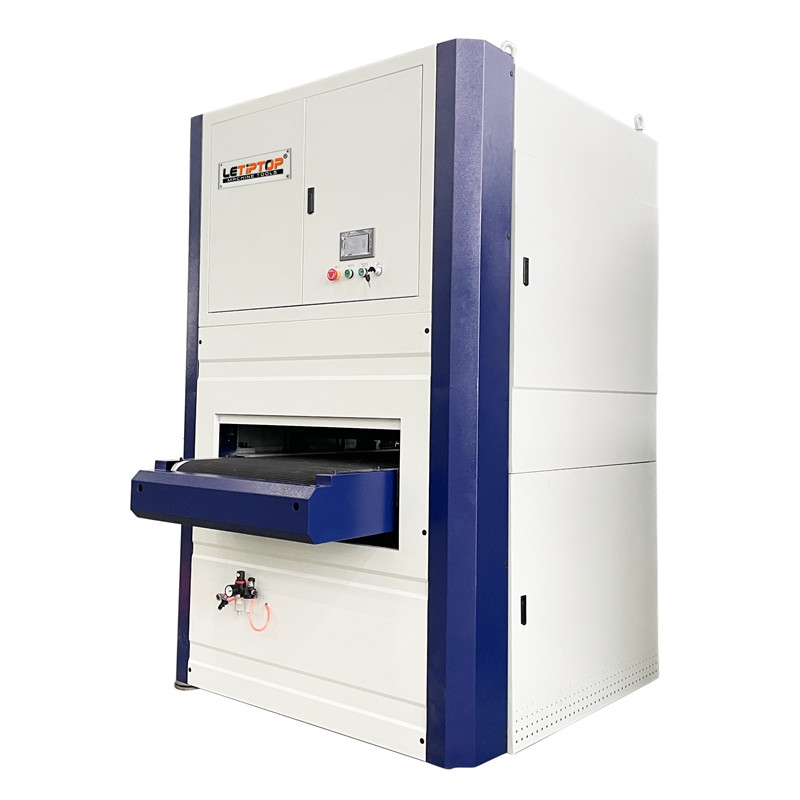

The sheet metal is deburred so that it can meet the quality requirements of the product. Depending on the shape, material and dimensions of the component, Metal Finishing Machine is used for mechanical deburring.

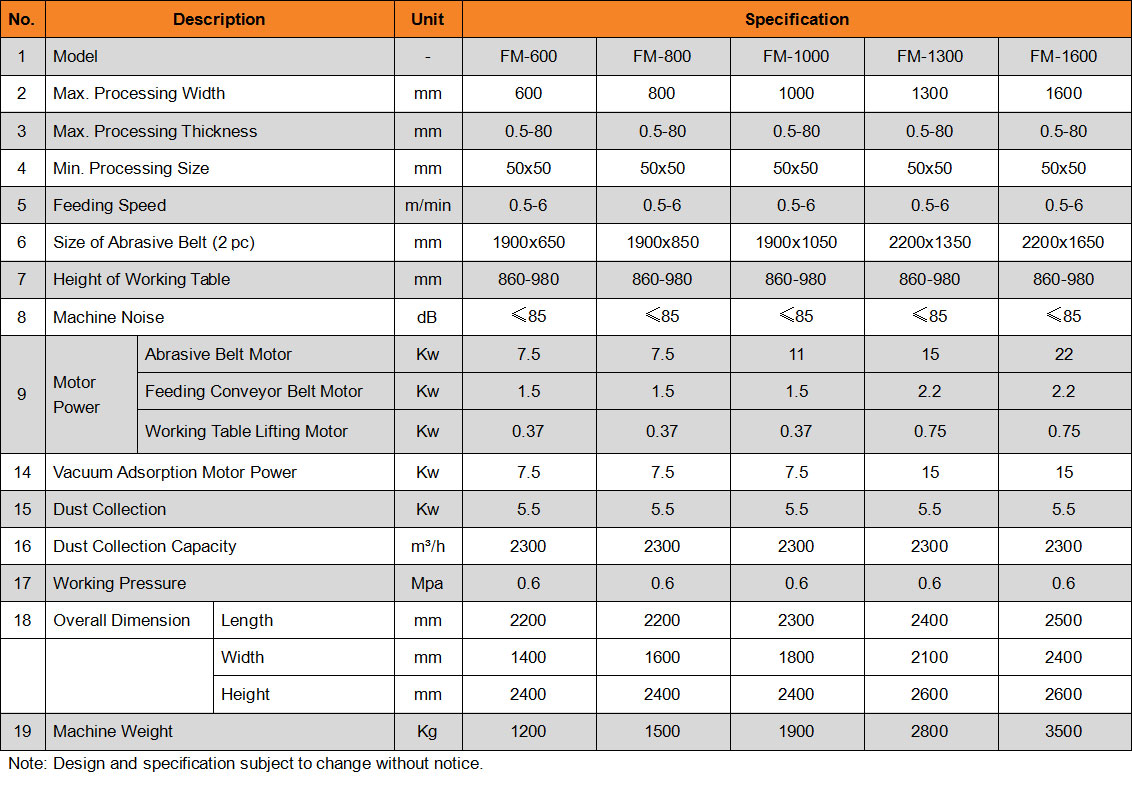

● Finishing material thickness of sheet and plate upto 100mm.
● Parts width capacity: 600mm, 800mm, 1000mm, 1300mm and 1600mm.
● Efficient processing of small parts 50x50mm.
● Suitable for Stainless Steel, Iron Plate, Aluminum, Brass, Copper and other alloy steels.
● Adjustable feeding speed.
● Up to 22KW main motor drive.

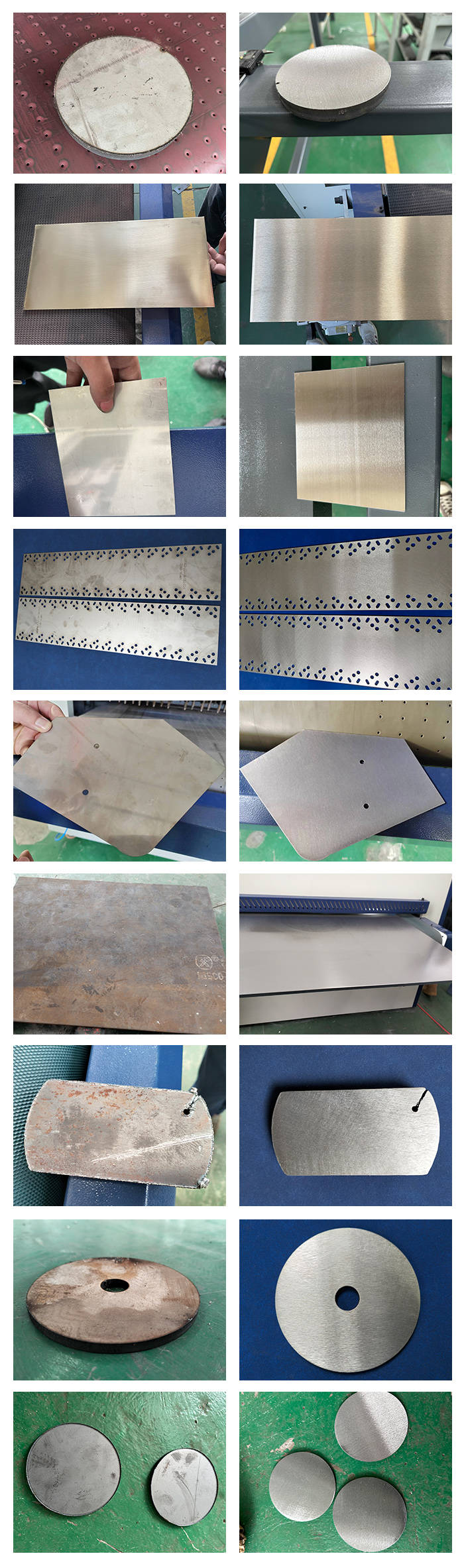

● Applications: Deburring, Hairline finishing and Polishing.
● Surface finishing without complex set-up work

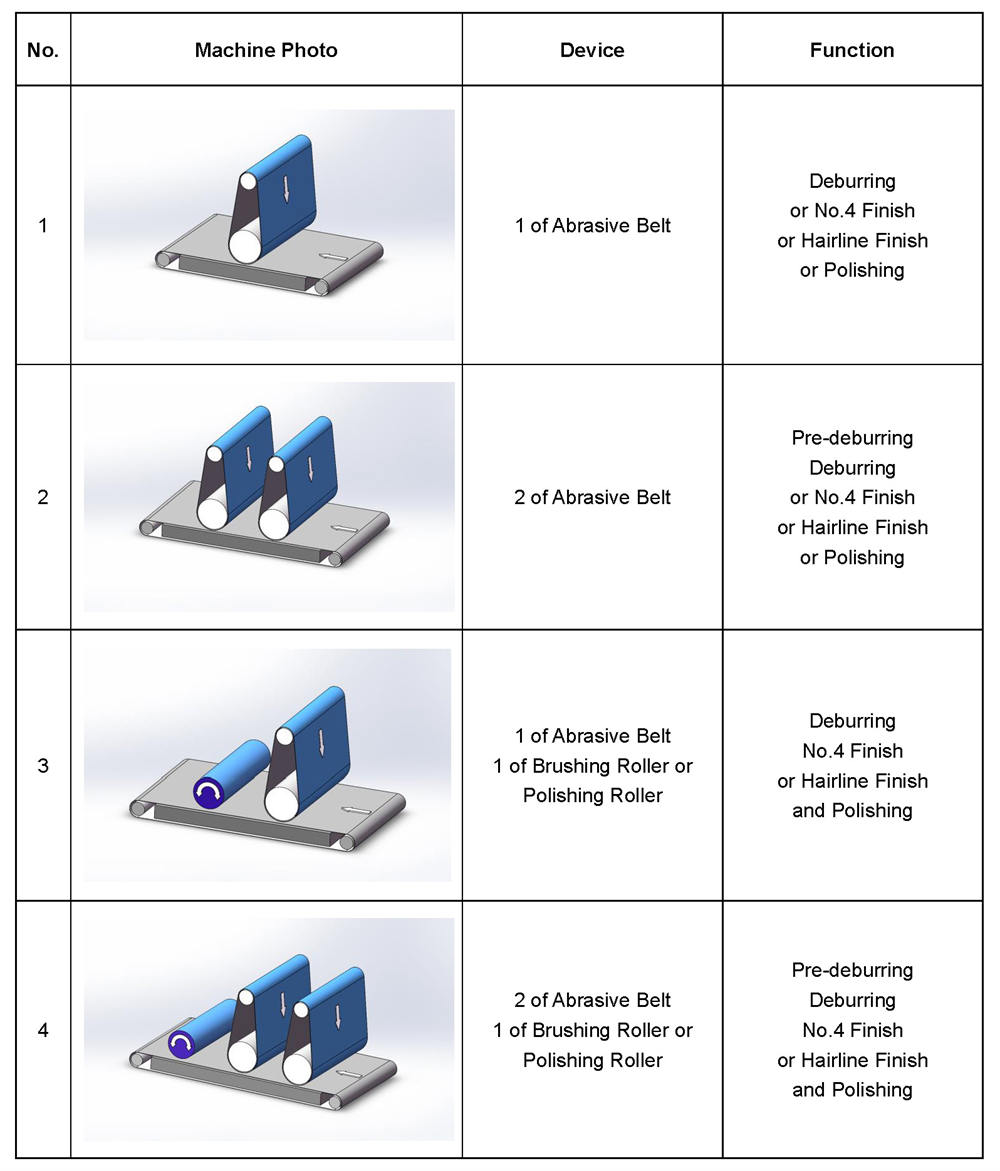

● Wide abrasive belt with single or multiple combination structure.

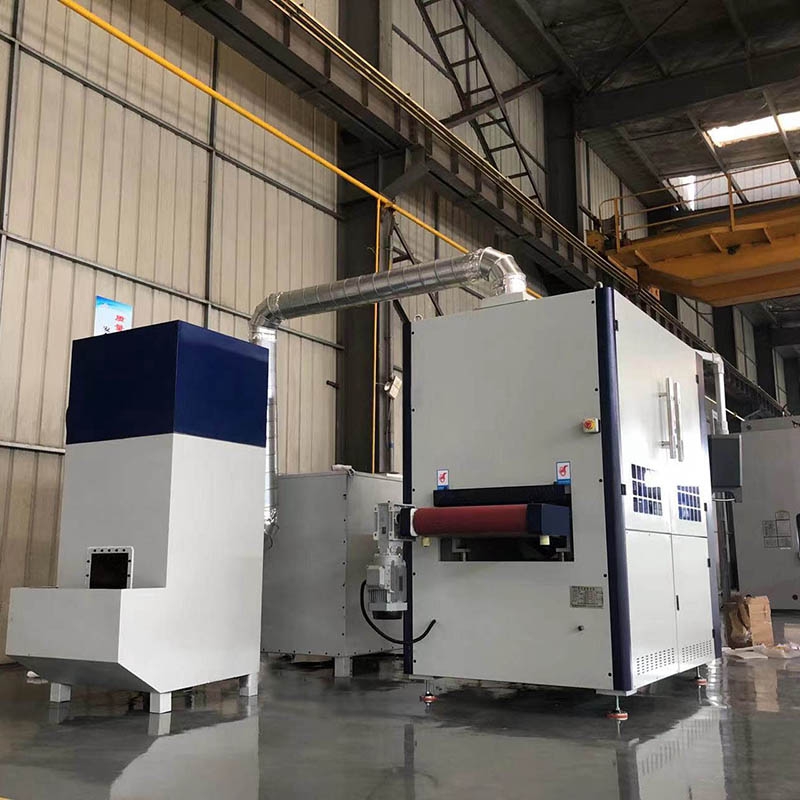

● Dust collector available with capacity 2300m³/h.
● Directly setting of all the processing parameters.

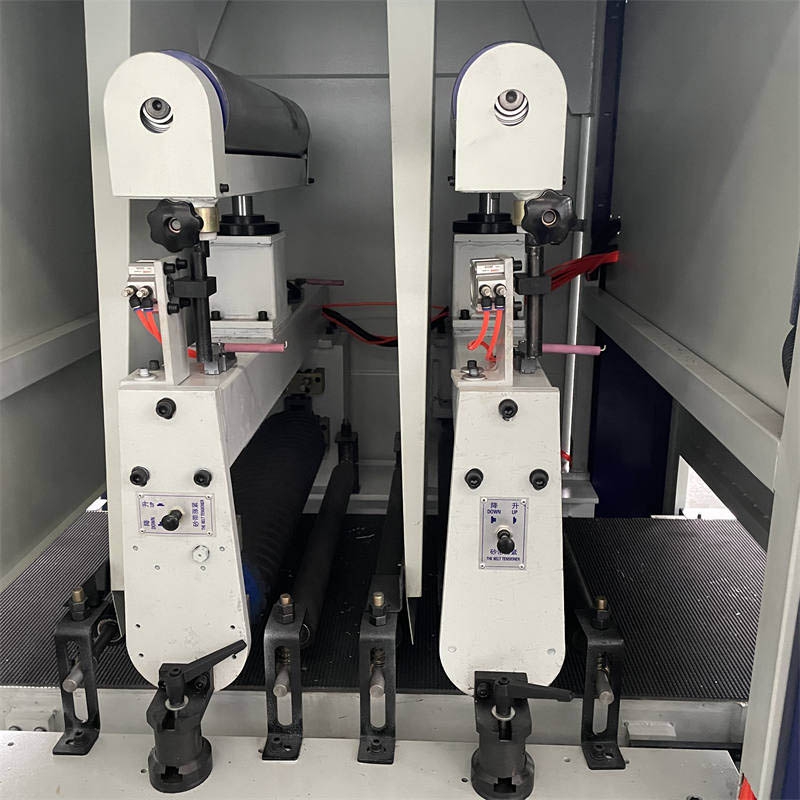

● Abrasive belt grinding station for oxide smoothing and surface finishing at one pass.

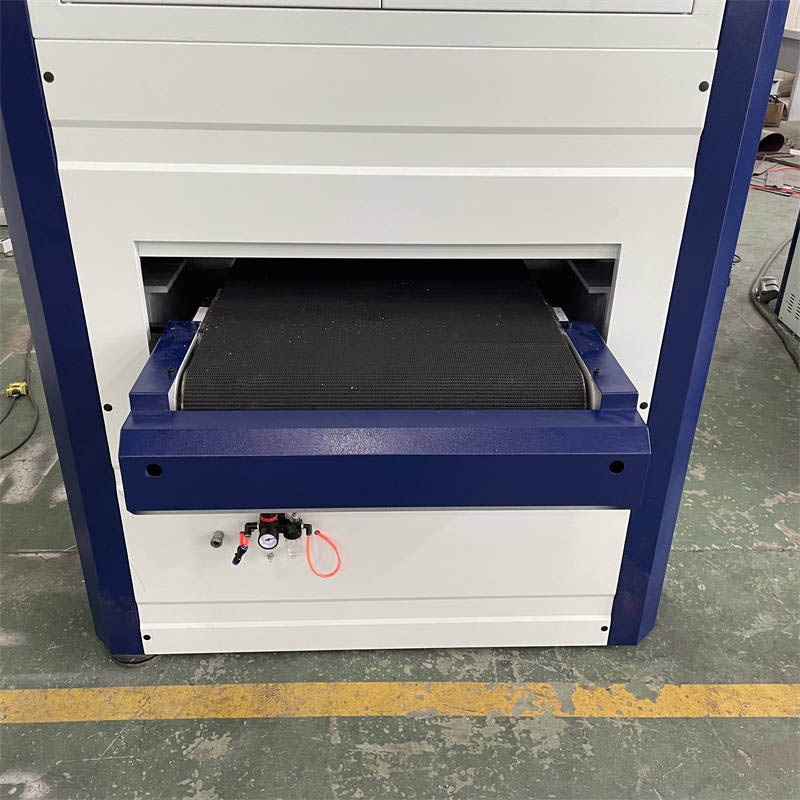

● Vacuum adsorption conveyor feed table with self-cleaning air device for holding small parts.
● The high quality and solid construction of the machine guarantees a long lifetime.
● The compact construction of the machine requires limited floor space.
● Upto 80% energy savings compared to conventional metal deburring machines.
● Window in the machine doors allows to monitor the process.

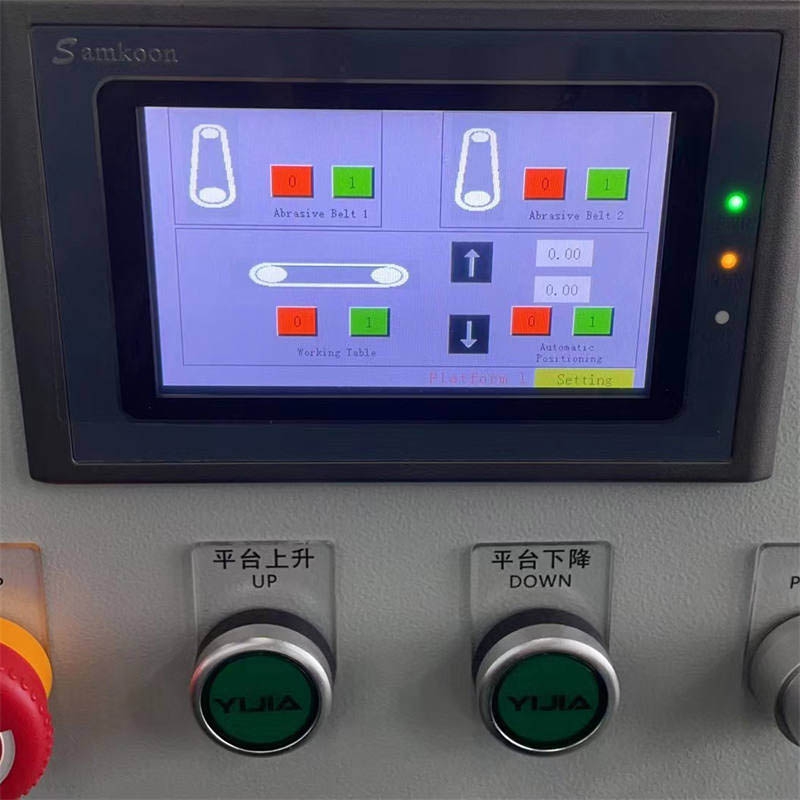

● Touch panel for intuitive operation

Give us a call at +86-13812394816 or email us by tiptop@tiptopmfg.com today for a formal quote on the Metal Finishing Machine and talk to LETIPTOP expert.
